Commercial Leak Diagnostics Perth
Find the Source Before Commercial Repairs Begin
Where water appears in a commercial building is rarely where it entered. Water travels through slabs, cavities, joints and membranes before it becomes visible.
Waterseal investigates water ingress using non-destructive equipment including HF Sensor microwave moisture scanners, array scanning for large slabs, thermal imaging, acoustic pipe leak detection, drain cameras and borescopes. Where the membrane is compatible, high voltage electronic leak detection (HVELD) locates breaches precisely.
Findings are issued as a written report with moisture mapping, photographs and a recommended repair scope, so remediation is targeted, defensible and priced against a defined problem rather than a guess.
Commercial Leak Diagnostics Services
Water Ingress Problems We Investigate
Leaks can travel laterally, follow reinforcement, move through cavities or appear well away from the original defect. A structured investigation helps separate the visible symptom from the underlying cause.
We investigate both active leaks and concealed moisture where the source is uncertain.
- Recurring roof or ceiling leaks
- Damp walls and unexplained moisture
- Failed or damaged waterproofing membranes
- Balcony, terrace and podium leaks
- Water ingress into occupied areas
- Basement and undercroft moisture
- Leaks around joints and penetrations
- Wet-area and bathroom leaks
- Planter box and roof-garden leaks
- Post-repair verification requirements
Evidence-Led Diagnostics for Complex Buildings
Reliable diagnosis comes from choosing the right method for the membrane, substrate, access and site conditions. Waterseal combines visual assessment with electronic and moisture-based testing to build a clearer picture of where water is entering and how it is travelling.
The result is a targeted investigation designed to support better repair decisions-not a generic scan or a guess based only on the visible damage.
- High Voltage Electronic Leak Diagnostics (HVELD)
- Thermal imaging under suitable conditions
- Non-destructive moisture mapping
- Multi-depth moisture readings
- Membrane integrity testing
- Targeted testing of repairs
- Building-envelope moisture investigation
- Clear findings and recommended next steps
Our Commercial Leak Diagnostics Process
Project Review
On-Site Assessment
Diagnostic Testing
Map & Verify
Findings & Report
Repair Pathway
Specialist Investigation Equipment
Waterseal selects the diagnostic method to suit the substrate, construction and suspected moisture pathway across commercial, strata, institutional and civil sites. Readings, moisture mapping, thermal patterns, photographs and recorded inspections are assembled into evidence-backed findings, a written investigation report and a defined repair scope.
HVELD is one method within the wider investigation process and is used only where the membrane system and site conditions are suitable. The phrase leak detection remains relevant, but the service extends well beyond simply locating a visible leak.

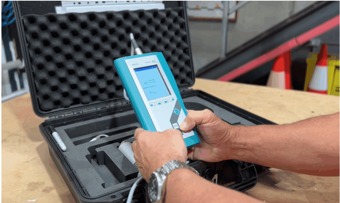

HF Sensor Moist 350B
Microwave moisture profiling through tiles, screeds and concrete using interchangeable sensor heads at different depths.
HF Sensor Moist Scan 100
Rapid array scanning and moisture mapping across large floors, roof decks, podiums and slabs.
Gann BL Moisture Meters
Close-range structural moisture measurement for masonry, plaster, render and timber, with ambient and dew-point readings.

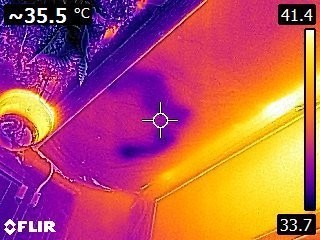

FLIR Thermal Imaging
Thermal patterns help identify areas of interest, hidden water paths and saturated materials before direct moisture testing confirms the result.

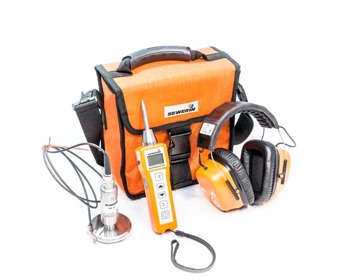

Sewerin Stethophon 04
Acoustic investigation helps distinguish concealed pressurised pipe leaks from membrane and building-envelope failures.
Ridgid SeeSnake Camera
Recorded internal inspection of drains, downpipes and stormwater lines identifies cracks, displaced joints and drainage defects.
Jeet QT360 Borescope
Articulating camera inspection through small openings documents membranes, flashings, cavities and concealed voids without broad demolition.
HVELD & Targeted Testing
High voltage electronic leak detection pinpoints compatible membrane breaches, supported by flood testing and targeted moisture testing where appropriate.
Commercial Waterproofing Experience Across Perth & WA
Waterseal’s commercial waterproofing experience supports informed investigation across complex membranes, roofs, podiums, plant rooms and remedial building projects.
The Thornlie childcare centre investigation shows how non-destructive testing helped locate defects in a suspended-slab membrane.
5 Mill Street, Perth
- Client
- Location
- Commercial property client
- Perth, WA
Purpose Built Student Accommodation – Stirling Street – Roof & Podium Planters
- Client
- Location
- Purpose-built student accommodation developer
- Perth, WA
WAIS Remedial Works
- Client
- Location
- Western Australian Institute of Sport
- Perth, WA
Douro St West Perth
- Client
- Location
- Strata property client
- West Perth, WA
Where Commercial Leak Diagnostics Is Used
Roofs & Roof Decks
Locate membrane breaches and investigate recurring roof leaks without relying on broad exploratory demolition.
Balconies, Terraces & Podiums
Investigate leaks affecting occupied areas below tiled, paved or membrane-lined external spaces.
Basements & Undercrofts
Assess concealed damp, water paths and below-ground moisture affecting walls, floors and adjoining areas.
Wet Areas
Investigate suspected bathroom, shower and internal wet-area leaks before defining the repair scope.
Car Parks & Lift Pits
Trace water ingress through slabs, joints, penetrations and waterproofed structural areas.
Planter Boxes & Roof Gardens
Test suitable membrane systems where flood testing is difficult or creates additional risk.
Retaining Walls
Map moisture patterns and investigate likely ingress paths through below-ground construction.
Tanks & Water Features
Support membrane integrity checks and targeted diagnosis for water-retaining structures.
Two Technologies. One Clearer Diagnosis.
HVELD uses an electrical field to locate breaches in suitable dry, non-conductive waterproofing membranes. When the test current reaches a defect, the equipment identifies the breach location so it can be marked for targeted repair.
Moisture mapping measures moisture patterns at and below the surface. Used alongside site observations and thermal imaging, it helps show the extent of concealed damp and the direction water may be travelling through a building element.
These methods solve different parts of the problem. Waterseal selects and combines them according to the construction, membrane and site conditions.
Why Choose Waterseal for Commercial Leak Diagnostics in Perth?
Waterproofing Expertise
Our diagnosis is informed by practical membrane, detailing and remedial waterproofing experience.
Targeted Testing
We select methods around the surface, system and site conditions rather than applying one test everywhere.
Non-Destructive Approach
Where suitable, testing narrows down suspect areas before unnecessary opening-up or demolition.
Commercial & Residential
Support for builders, strata, facilities teams, property owners and residential clients across Perth.
Clear Next Steps
Findings are explained in practical language with a repair or further-investigation pathway.
Repair Verification
Testing can support confirmation of targeted repairs where the membrane and conditions allow.
Commercial Leak Diagnostics FAQs
Often, yes. Non-destructive moisture testing and thermal imaging can narrow down suspect areas before finishes are removed. The appropriate method depends on the construction and site conditions.
High Voltage Electronic Leak Diagnostics uses an electrical field to identify breaches in suitable dry, non-conductive waterproofing membranes. A detected breach can then be marked for targeted repair.
HVELD may be suitable for torch-on membranes, liquid-applied systems, bituminous coatings and certain sheet membranes. Waterseal confirms suitability after reviewing the membrane and substrate.
Waterseal investigates membrane failures and building-envelope water ingress across commercial buildings, strata developments, institutional facilities, roofs, podiums, plant rooms and civil structures throughout Perth and WA.
The initial service focuses on identifying the likely source and extent of the issue. Waterseal can then recommend or quote suitable remedial waterproofing work where it falls within our scope.
In many situations, yes. Depending on the membrane and site conditions, targeted re-testing can help verify that repaired defects have been addressed.
The report records site observations, moisture readings or mapping, relevant photographs, the most probable source and a recommended repair scope. The detail is designed to support targeted pricing and informed decisions.
No. HVELD is one diagnostic method and is appropriate only for compatible exposed membrane systems. Waterseal selects scanning, thermal, acoustic, camera, flood or electronic testing according to the substrate and suspected problem.
